TMUX7219RQXR Texas Instruments

Manufacturer: Texas Instruments
Manufacturer PN: TMUX7219RQXR
Description: IC SW SPDT-NO/NCX1 2.8OHM 8WSON
Detailed Description: 1 Circuit IC Switch 2:1 2.8Ohm 8-WSON (3x2)

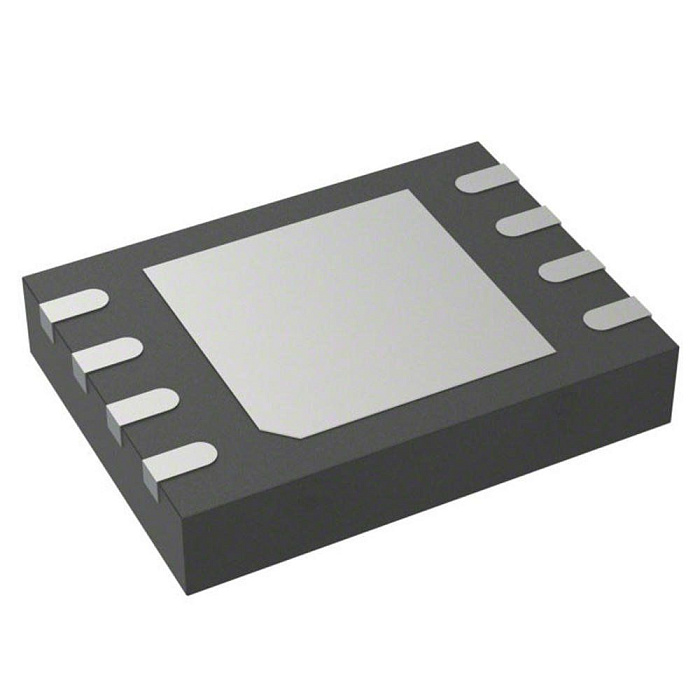

Package: 8-WFDFN Exposed Pad
Mfr: Texas Instruments
Series: -
Switch Circuit: SPDT - NO/NC
Multiplexer/Demultiplexer Circuit: 2:1
Number of Circuits: 1
On-State Resistance (Max): 2.8Ohm
Channel-to-Channel Matching (ΔRon): 100mOhm (Typ)
Voltage - Supply, Single (V+): 4.5V ~ 44V
Voltage - Supply, Dual (V±): -
Switch Time (Ton, Toff) (Max): 175ns, 180ns
-3db Bandwidth: 40MHz
Charge Injection: -16pC
Channel Capacitance (CS(off), CD(off)): 34pF, 48pF
Current - Leakage (IS(off)) (Max): 5nA (Max)
Crosstalk: -106dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-WFDFN Exposed Pad
Supplier Device Package: 8-WSON (3x2)
