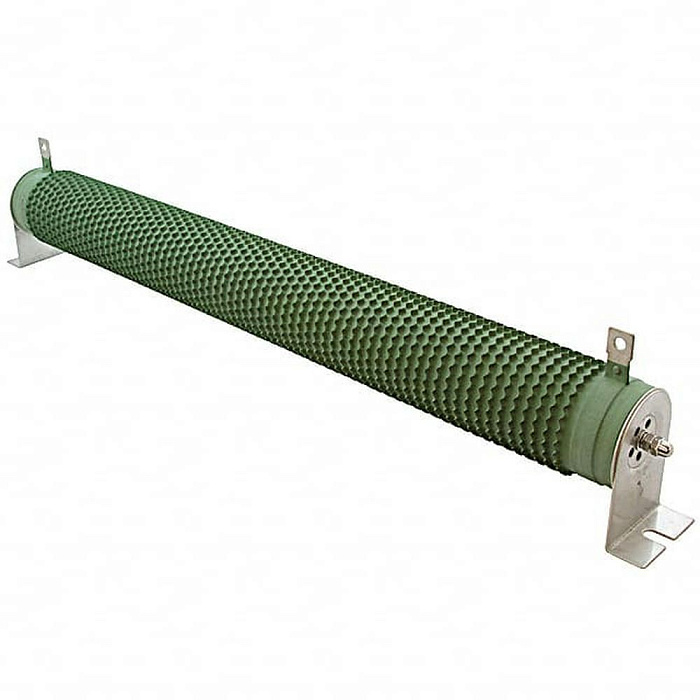

TE2500B150RJ TE Connectivity Passive Product

Manufacturer: TE Connectivity Passive Product
Manufacturer PN: TE2500B150RJ
Description: RES CHAS MNT 150 OHM 5% 2500W
Detailed Description: 150 Ohms ±5% 2500W Wirewound Chassis Mount Resistor
Package: Bulk
Mfr: Sullins Connector Solutions
Series: -
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 34
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.318" (8.08mm)
Contact Length - Post: 0.220" (5.58mm)
Overall Contact Length: 0.638" (16.21mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: -
Operating Temperature: -65°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -
Mated Stacking Heights: -
Contact Finish Thickness - Post: 100.0µin (2.54µm)
Applications: -
Base Product Number: PEC34
