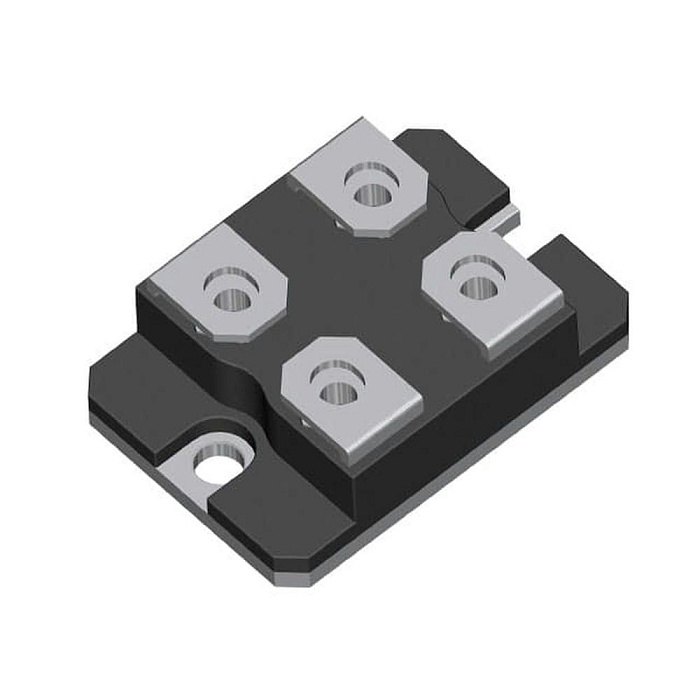

KHR4-T227 1.0 OHM 5% Riedon

Manufacturer: Riedon
Manufacturer PN: KHR4-T227 1.0 OHM 5%
Description: RES CHAS MNT 1 OHM 5% 200W
Detailed Description: 1 Ohms ±5% 200W Thick Film Chassis Mount Resistor
Package: Bulk
Mfr: Samtec Inc
Series: TMM
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 17
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.065" (1.65mm)
Contact Length - Post: 0.090" (2.29mm)
Overall Contact Length: 0.214" (5.43mm)
Insulation Height: 0.059" (1.50mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): 3.2A per Contact
Voltage Rating: -
Mated Stacking Heights: -
Contact Finish Thickness - Post: 3.00µin (0.076µm)
Applications: -
Base Product Number: TMM-117
