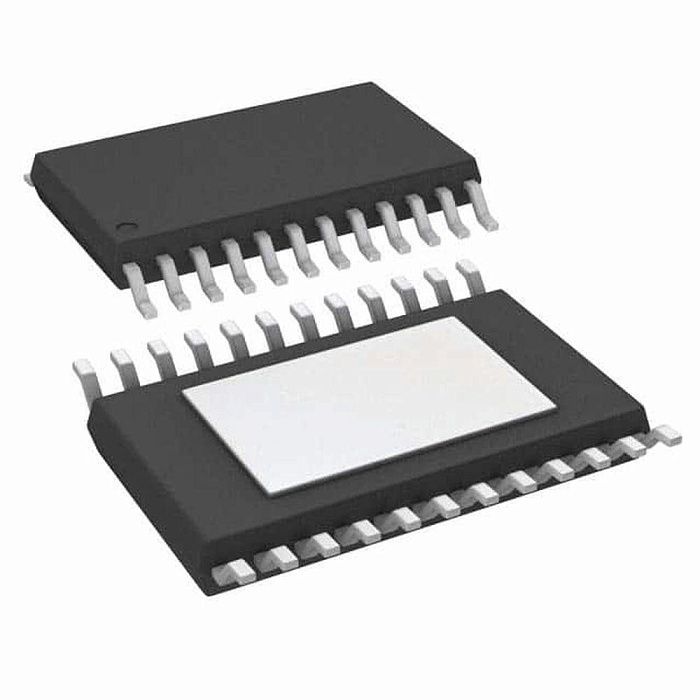

A5929KLPTR-T Allegro MicroSystems

Manufacturer: Allegro MicroSystems
Manufacturer PN: A5929KLPTR-T
Description: IC HALF BRIDGE DRIVER 24TSSOP
Detailed Description: Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET 24-TSSOP-EP
Package: 20-TSSOP (0.173", 4.40mm Width)
Mfr: Texas Instruments
Series: -
Digi-Key Programmable: Not Verified
Driven Configuration: Half-Bridge
Channel Type: Independent
Number of Drivers: 2
Gate Type: N-Channel MOSFET
Voltage - Supply: 8.7V ~ 20V
Logic Voltage - VIL, VIH: 0.8V, 2V
Current - Peak Output (Source, Sink): 750mA, 1.5A
Input Type: Non-Inverting
High Side Voltage - Max (Bootstrap): 125 V
Rise / Fall Time (Typ): 24ns, 12ns
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 20-TSSOP
Base Product Number: DRV8300
